How does Shading Affects Solar? - 2026 Leeds

You've probably heard that solar panels need sunlight, but what happens when part of your Leeds roof sits in shadow? Even a small patch covering just 3% of a panel can slash output by up to 75%. Shadows from chimneys, trees, or neighbouring properties can drag down your entire system's performance.

Quick take: Leeds' low winter sun creates long shadows that impact solar output. Modern solutions like microinverters, power optimisers, and smart panel placement help you generate strong returns. This guide explains how shade affects panels and what you can do about it.

How Shade and Shadows Affect Solar Performance

Solar panels thrive on direct sunlight. Recent reports found that blocking just one cell out of 36 (roughly 3% of a panel's surface) can reduce power output by up to 75%.

Solar cells in a panel are wired in series, like links in a chain. When one cell gets shade, it becomes the weakest link, limiting current flow. Think of it like a blocked pipe: one clogged section restricts water flow through the whole system.

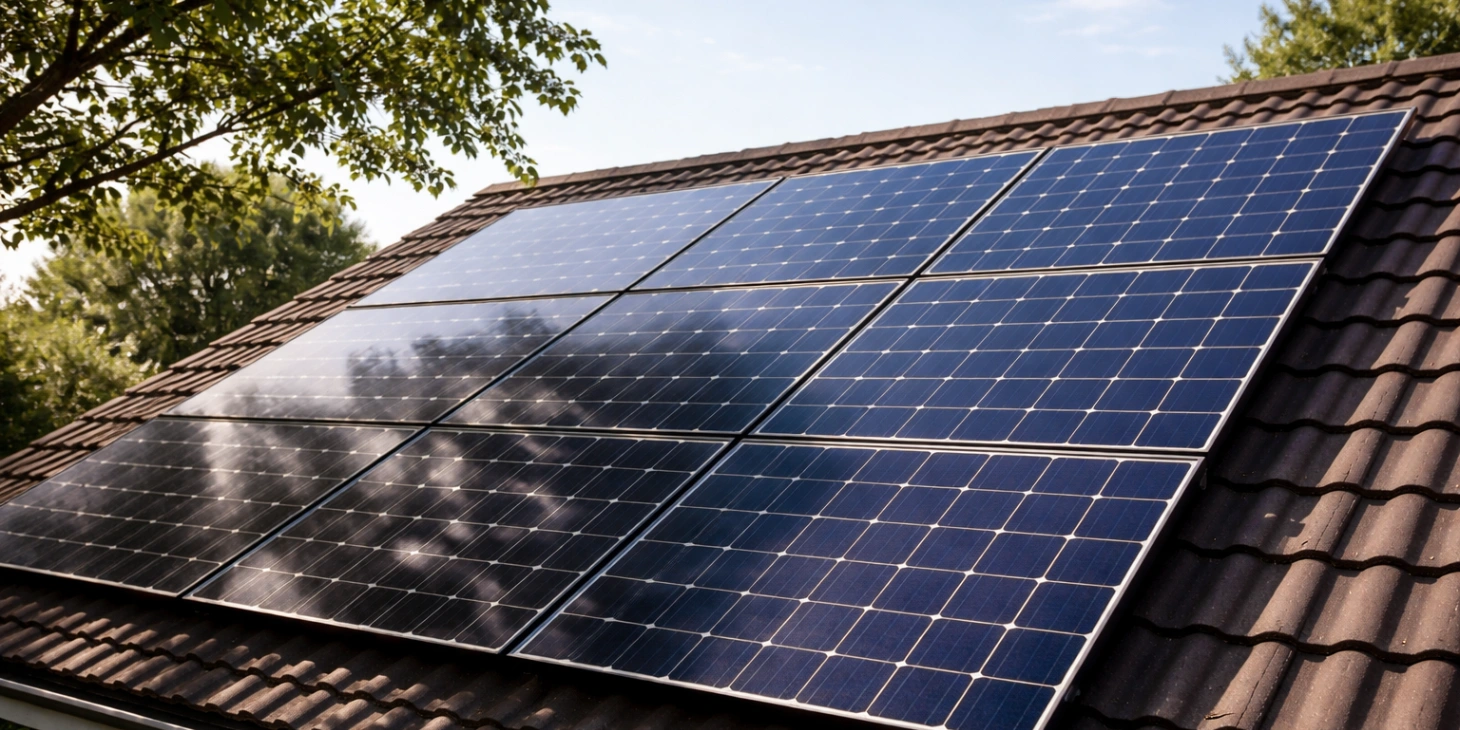

Real world data confirms these losses. Even partial shadow from tree branches, chimneys, or overhead wires can reduce a typical home system's annual energy yield by around 5 to 25%. When one panel produces less current, it drags down the entire series circuit.

Shade and Shadows in the UK

Leeds properties face unique shadow challenges due to our climate. The biggest factor is seasonal sun angle. In winter, the sun stays much lower in the sky, causing objects to cast longer shadows. A tree or building that doesn't shade panels in summer could still cast a long shadow in January.

Historic England notes that in winter the sun is much lower in the sky, which may cause issues with far shade. Installers must assess both near and far obstacles that could cast shadows at different times of year.

Common Leeds building features introduce shade challenges. Chimneys on Victorian terraces in Headingley, dormer windows in Roundhay, neighbouring houses in Chapel Allerton, and tall trees create sharp shadows on rooftops. Back-to-back houses in areas like Holbeck and Beeston often have limited roof space where every bit of sunlight matters.

UK installation standards under the MCS scheme require a formal shade assessment for every solar installation. Installers quantify the percentage of annual sunlight lost and derive a "Shade Factor." For example, a Shade Factor of 0.90 means 10% annual energy loss.

Here's something surprising: shade can matter more than orientation. A south facing roof heavily covered part of the day may generate less energy than an east or west facing roof with full sun. Eliminating shade is often more critical than having perfect south orientation.

Professional site surveys map shadow patterns at different hours and seasons, then design arrays to avoid problematic areas. When shade is unavoidable, installers recommend microinverters or power optimisers.

Partial Shade vs Full Shade: What Changes on Real Roofs

Not all shadow is equal. Partial shade refers to situations where a panel is only partly in shadow, for example, a small corner covered by a tree branch. Full shade means an entire panel is completely dark.

On real Leeds roofs, partial shade is far more common. Think of dappled light through leaves or the edge of a dormer casting shadow. When a panel is partially shaded, some sunlight still reaches unblocked cells, so the panel continues producing power at reduced levels.

In contrast, complete shade is far more damaging. That panel will produce little to no energy whilst fully dark.

Modern panel design has improved shade tolerance. Most PV modules use techniques like half-cut solar cells and multiple bypass diodes to localise shade effects. In older panels, blocking one cell in a series string could knock out that entire string. Today's panels often split cells into independent substrings.

For instance, half-cut cell panels are wired as two sections in parallel. If the top half is shaded, the bottom half can still generate at full power. The key takeaway: partial shade allows some continued production with losses, whereas full shade halts production entirely.

Why Shade Hits Hard on String Systems (the "Weakest Link" Effect)

Traditional solar installations wire panels together in series strings. A shaded panel can severely drag down performance of all other panels in its string. This is often called the "Christmas lights effect" or "weakest link effect."

Just as one bad bulb in old Christmas lights could make the whole string go dark, one underperforming panel throttles the entire series string. In a series circuit, current is constant through all components. A shaded panel that produces less current forces that lower current upon every panel.

All the other panels might be capable of generating 8 amps in full sun, but if one solar panel can only generate 4 amps because of shade, the string's current is limited to 4 amps. Every solar cell is like a link in a chain. The shaded cell is the weakest link.

At the module level, if one module in a series string is shaded, it can bring down power output significantly. There are ways to partially mitigate this. Grouping panels with similar shade patterns on their own strings helps. That way, an unshaded string runs at full power whilst only the shaded string is affected.

How to Assess Shade on Your Roof

It's worth assessing how much shade your roof gets before installing panels. Shade assessment involves figuring out when and where shadows fall throughout the year.

Professional solar installers perform a site survey with shade analysis as routine. They'll use tools like a solar pathfinder, SunEye, or 3D modelling software to predict the sun's path and shadows for each month.

They also consider seasonal shade changes. For example, a tall tree to the south might not cast shade in summer when the sun is high but could significantly shadow the roof in winter.

For homeowners wanting to gauge roof shade, observe your roof at different times of day, especially around 9 AM, noon, and 3 PM. Also consider different seasons.

Solar panels should ideally receive full sun from late morning through early afternoon. These are peak solar hours. A little shade very early or late has less impact, whereas shade during midday hours causes bigger losses.

Bypass Diodes: Advantages and Limitations

One fundamental technology helping panels cope with shadows is the bypass diode. Bypass diodes are small one-way electrical valves wired within a solar module that allow current to skip over shaded or damaged cells.

In a standard solar panel, groups of cells (typically 18 to 24 cells per group) are each protected by a bypass diode. If cells in that group become shaded and start impeding current, the bypass diode conducts and routes electricity around that group. This prevents shaded cells from acting like a roadblock.

Primary advantages are safety and continued power production. From a safety standpoint, a shaded cell can overheat, but a bypass diode prevents this. In terms of power, bypass diodes ensure unshaded portions can continue producing energy.

However, bypass diodes come with limitations. When a diode activates and bypasses a group of cells, output from those cells is lost. For example, in a 60 cell module with 3 diodes (each protecting 20 cells), if one set of 20 cells is heavily shaded, its diode bypasses that section.

So whilst the solar panel isn't completely dead, its maximum power is reduced proportional to the fraction bypassed.

Solutions for Shaded Roofs: Microinverters vs Optimisers vs String Inverters

When it comes to inverter technology, there are three common setups: traditional string inverters, power optimisers, and microinverters. For shaded roofs, the choice makes a big difference.

String Inverter: A single central inverter handles a whole string of panels. Solar panels are linked in series. In this setup, shade on one solar panel can affect the whole string's output. However, many modern string inverters now offer multiple MPPT inputs or have algorithms to cope better with shade. The upside is simplicity and cost effectiveness.

Microinverters: Microinverters are tiny inverters mounted on each solar panel. Each converts DC to AC right at the panel with its own MPPT. The huge advantage is independence: each solar panel operates on its own. If one solar panel is shaded, it has no effect on other panels.

The shaded solar panel's microinverter harvests what it can, whilst neighbouring panels' microinverters squeeze full power out of those panels. This makes microinverters extremely effective for roofs with partial or irregular shade. They eliminate the weakest link issue.

Case studies show that in environments with frequent partial shadow, systems with microinverters produced about 5 to 10% more energy than comparable string systems. In heavy shadow conditions, gains can reach 17% annual increase.

Power Optimisers: Optimisers are devices installed at each solar panel that perform MPPT at panel level and feed conditioned DC power to a central string inverter. In a shaded scenario, an optimiser adjusts the shaded solar panel's voltage and current to maximise output without dragging down others.

The advantage is similar to microinverters: if one solar panel is shaded, optimisers ensure the rest aren't held back. Optimisers are generally less expensive than microinverters whilst giving most panel level benefits.

Testing indicated about a 5% gain in partially shaded conditions with optimisers versus a traditional string setup. A heavily shaded or complex roof will usually benefit most from microinverters or optimisers.

A traditional string inverter can work if shade is minimal or only during off-peak times. Modern string inverters with multiple MPPT inputs can handle two sub-arrays (perhaps one east facing, one west facing in areas like North Leeds or South Leeds) reasonably well.

In Leeds, installers lean towards microinverters or optimisers if shade is unavoidable. The choice often comes down to economics and shade severity. For a roof with significant shadow issues, the investment is usually justified by energy gains.

It's always a case-by-case decision best made in consultation with a solar professional.

Final Thoughts on Solar Panels in Shade

Shade is the solar panel's nemesis, but it's a challenge managed with careful planning, smart technology, and occasionally pruning shears. Even a little shade can have big impact, so it's worth identifying and minimising blocking wherever possible.

Start with a good site assessment. Know where shadows come from and when they occur. In Leeds with our low winter sun, be extra mindful of long seasonal shadows. Whenever feasible, design your solar panel layout to stay in sunshine during peak hours.

Thanks to modern advancements, having some shade on your roof doesn't mean you can't go solar. Technologies like bypass diodes, microinverters, and optimisers substantially reduce downsides. Bypass diodes ensure shade on part of a solar panel doesn't take out the whole panel or string. Microinverters and optimisers allow shaded panels to be isolated so the rest of the system runs strong.

That said, these solutions aren't magic. Any power from the sun that's physically blocked will be power not generated.

For residential and commercial solar projects across Leeds, from City Centre to East Leeds, West Leeds to the suburbs, it often comes down to cost-benefit analysis. If a tree is heavily shading the array, is it worth trimming or removing?

In many cases, investing more upfront in mitigation can yield significant gains and avoid long-term energy loss hurting your ROI. There's also long-term perspective: shade tends to increase over time from growing trees.

In summary, panels and shade don't mix well, but with the right approach, they can coexist. Ideally, you eliminate shade through site selection and design. When you can't, you mitigate it with technology and maintenance.

Armed with that knowledge, Leeds homeowners and businesses can make informed decisions to get the most from solar installations. If you're ready to explore solar for your property and want expert guidance on managing shade, get in touch with our team or learn more about battery storage solutions and maintenance services. You can also explore more insights on our solar blog.

Solar Panels in Shade FAQs

Do panels work in the shade?

Yes, panels will work with partial shadow, but output is greatly reduced. Solar panels produce most power in direct sunlight. In shaded conditions, panels generate only a fraction of potential.

If you have a traditional string inverter, one shaded solar panel can drag down performance of other panels in the same string. However, with the right system design using microinverters or optimisers, a shaded solar panel's impact can be isolated.

Solar panels don't generate power in complete darkness (at night or if completely shaded), but they can generate some electricity under diffuse light such as cloudy sky. Just keep in mind more shade means less energy. Ideally, panels should be in direct sun for the majority of the day.

Are there shade tolerant panels or special panels for shadowy areas?

There's no solar panel immune to shade. If sunlight isn't reaching cells, those cells won't produce power. However, modern panels are built to be more shadow tolerant in how they handle partial shade. Many panels now come with built-in bypass diodes and split cell architecture, which means shade on one part won't shut down the entire solar panel.

The best shade tolerant solution is really a well-designed system using panel level electronics managing shade (microinverters or optimisers) and choosing solar panel placement to avoid shade. In short, all panels prefer sun, but today's panels cope better with partial shadow than older ones.

How can I mitigate shade on my solar system?

There are several strategies to deal with shade and minimise impact.

Optimise solar panel placement. This is the first and most important step. Try to install solar panels where they get most sun hours. During site survey, identify obstacles and see if solar panels can be moved away from dark zones.

Trim or remove shade sources. If trees are causing significant shade and it's acceptable to trim them, this can dramatically improve solar output. Trimming branches or cutting down an overshadowing tree can eliminate the shade source entirely.

Use microinverters or power optimisers. These devices allow each solar panel to operate independently. Microinverters convert power at each solar panel, so one solar panel's shade won't affect others. Power optimisers perform panel level MPPT, achieving a similar outcome.

Implement multiple strings or MPPT inputs. If using a string inverter, ensure the system is wired to separate solar panels with different sun and shade profiles.
